LPS-802 Digital Phase Shifter

LPS-802

4 – 8 GHz USB Programmable Phase Shifter

The LPS-802 Lab Brick USB programmable 50 Ohm, high precision RF Phase Shifter has 360-degree range settable in 1-degree increments. Each phase shifter is calibrated in our production lab over the frequency range for optimal accuracy. The unit is powered and controlled by USB connection to a PC or self-powered hub, and is programmable from the included graphical user interface (GUI) software, or by using the provided sdk.



In Stock

LPS-802

4 – 8 GHz USB Programmable Phase Shifter

The LPS-802 Lab Brick USB programmable 50 Ohm, high precision RF Phase Shifter has 360-degree range settable in 1-degree increments. Each phase shifter is calibrated in our production lab over the frequency range for optimal accuracy. The unit is powered and controlled by USB connection to a PC or self-powered hub, and is programmable from the included graphical user interface (GUI) software, or by using the provided sdk.



In Stock

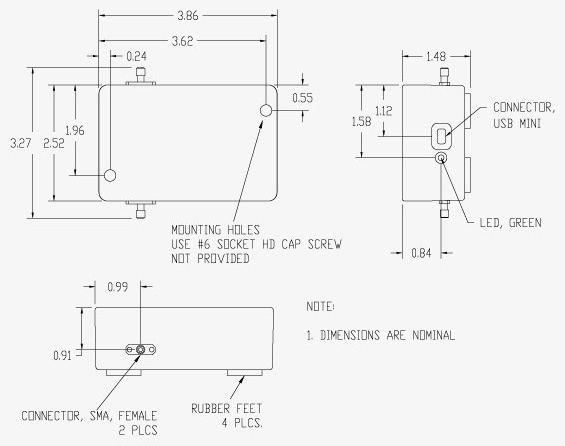

LPS-802 Digital Phase Shifter

Features

  • USB powered and controlled
  • Includes easy to install and use GUI
  • 360-degree control in 1-degree steps
  • SMA connectors
  • Easily programmable for ATE applications

Applications

  • Beam forming
  • Signal cancellation
  • Phase modulators
  • MIMO test platforms for LTE and WIFI
  • Phased array antenna systems

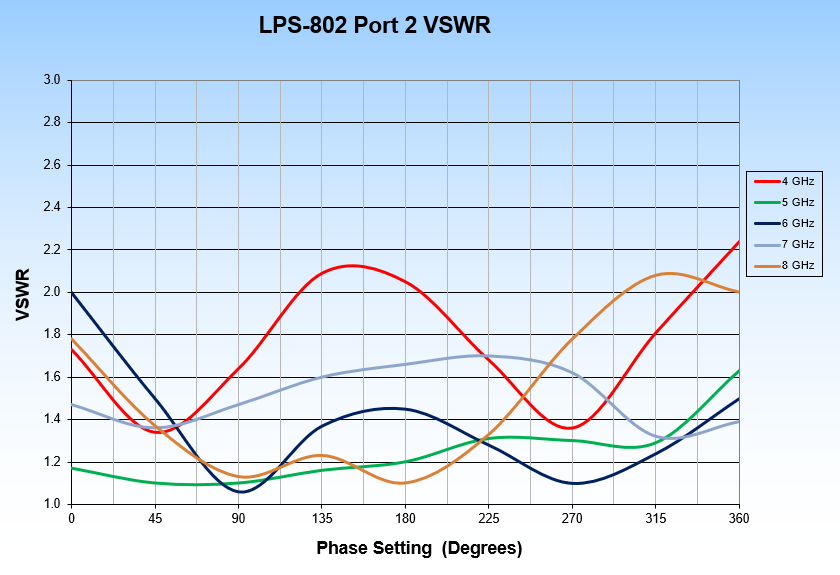

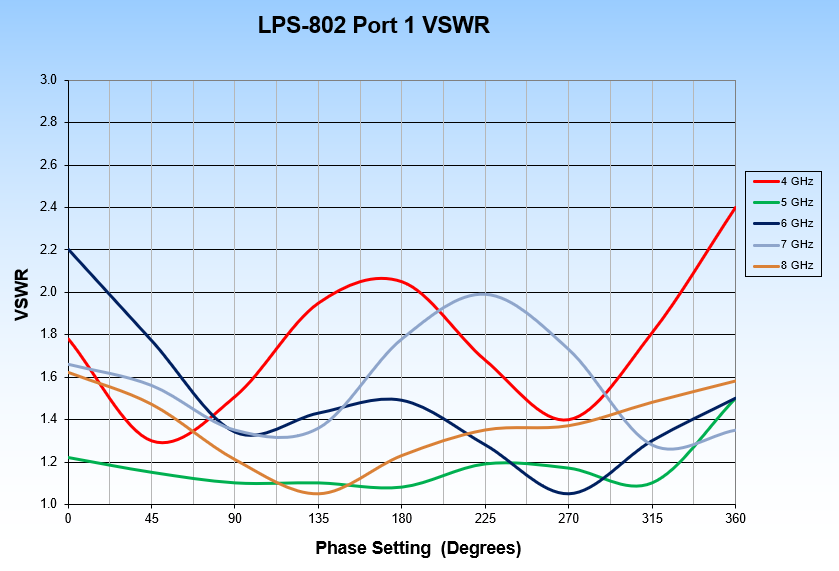

LPS-802
Freq.
Min

(GHz)
Freq.
Max

(GHz)
Phase
Adjustment
Range
Phase
Adjustment
Resolution
Phase
Adjustment

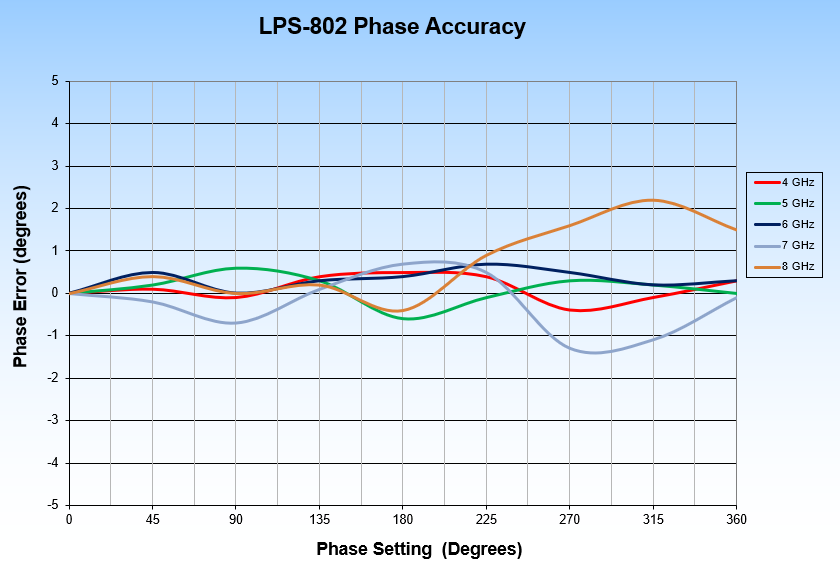

Accuracy

Typ.
Programmable
Phase
Profiles
External
Triggering
Response
Time

(µsec.)

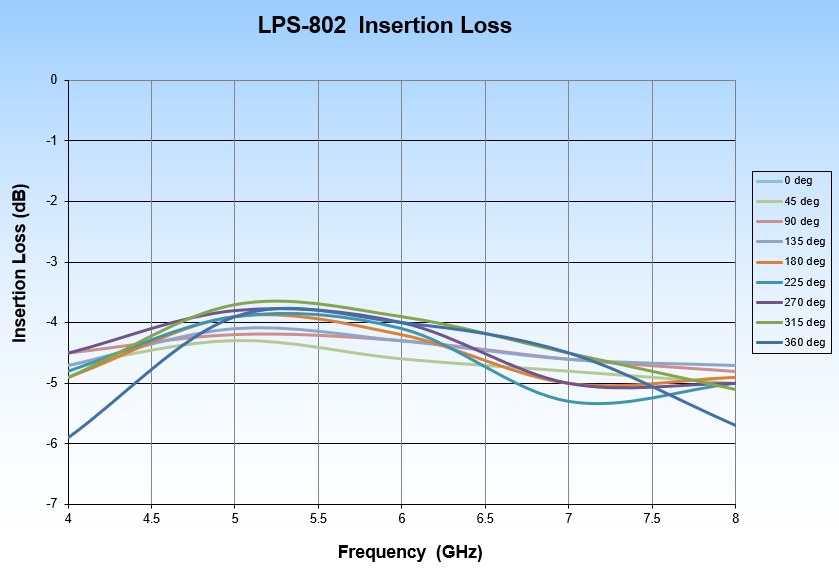

Insertion
Loss
USB
Connector
48360°± 2.5°User DefinedOptional106 dB typical, 8 dB maximumMiniB

Accessories

VNX-3m
9' USB Cable Type A/miniB
9
Ships within Within 24 hrs.
VNX-5m
15' USB Cable Type A/miniB
15
Ships within Within 24 hrs.
VNX-1m
3' USB Cable Type A/miniB
3
Ships within Within 24 hrs.
VNX-2m
6' USB Cable Type A/miniB
6
Ships within Within 24 hrs.
